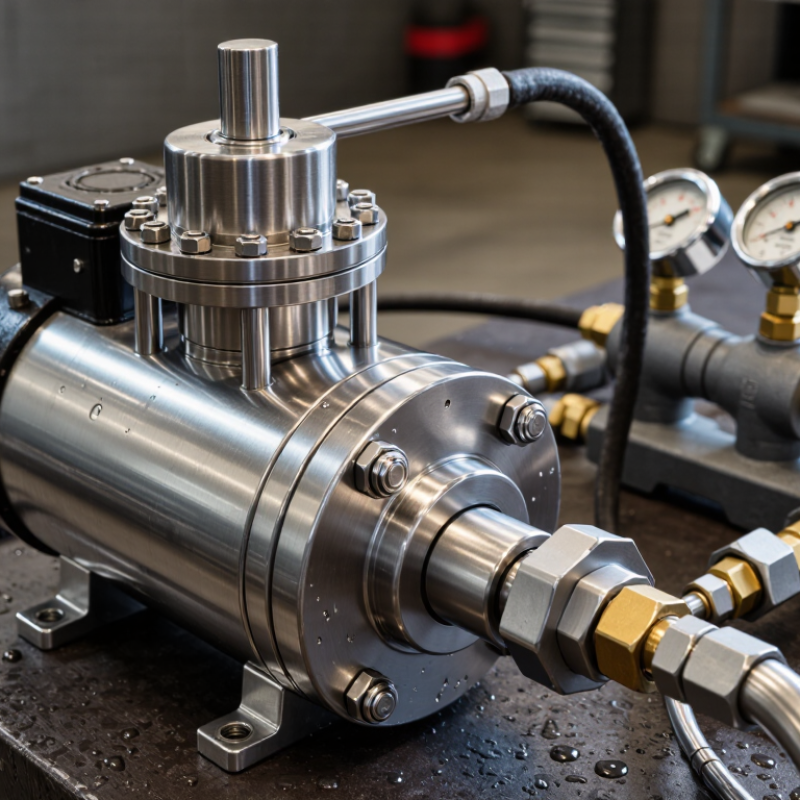

7 Tips for Choosing a High Pressure Plunger Pump

Selecting a High Pressure Plunger Pump is not simply a matter of choosing the highest pressure rating. The correct pump must match your fluid, flow demand, operating cycle, temperature, and maintenance capacity. A unit that looks powerful on paper may struggle with abrasive particles, chemical exposure, or frequent starts and stops. Small details matter. A poorly sized plunger can create vibration, seal damage, and expensive downtime.

Igor J. Karassik, a respected pump engineer and author, stated, “The function of a pump is to add energy to a fluid.” That principle remains practical today. Energy must enter the process efficiently, safely, and consistently. Our guide examines seven selection tips, including pressure requirements, flow stability, material compatibility, seal design, drive systems, efficiency, and supplier support. Each factor deserves attention before purchase.

Real operating conditions are often less tidy than technical data sheets suggest. Water may contain grit. Temperatures may fluctuate. Operators may not follow the ideal maintenance schedule. That is where selection becomes difficult. A High Pressure Plunger Pump should perform under those imperfect conditions, not only during a factory test. Still, no checklist can replace field measurements and experienced engineering judgment. This is easy to underestimate. By comparing real demand with verified performance data, buyers can reduce premature failures and choose equipment that remains dependable under pressure.

7 Tips for Choosing a High Pressure Plunger Pump
Table of Contents [Hide]
1 Define Pressure, Flow, and Duty: Plunger Pumps Can Exceed 1,000 bar
2 Check NPSH and Cavitation: Keep NPSHA Above NPSHR
3 Match Materials and Seals to Temperature, pH, and Solids Content
4 Compare Efficiency and Pulsation: Hydraulic Efficiency May Exceed 90%
5 Verify API 674 Compliance, Serviceability, and Life-Cycle Cost

Define Pressure, Flow, and Duty: Plunger Pumps Can Exceed 1,000 bar

Choosing a high-pressure plunger pump starts with three numbers: pressure, flow, and duty. Do not select a pump from pressure alone. A system may exceed 1,000 bar, but only when the pump, fittings, seals, valves, and control devices share that rating. Confirm the working pressure, not merely the maximum test pressure. Leave a sensible safety margin.

Flow determines production speed and pipe velocity. Pressure determines the power required. Duty describes how often the pump runs, for how long, and under what temperature. A pump used for short cleaning cycles faces different demands than one operating continuously. Check fluid viscosity, abrasive particles, temperature, and chemical compatibility. Small details matter.

Watch the inlet side carefully. Poor suction conditions can cause cavitation, vibration, and early plunger damage. Measure available pressure at the pump inlet instead of guessing from the tank height. A pulsation dampener can improve line stability, but it cannot repair an undersized suction pipe. It is easy to overlook this. I would also inspect seal leakage paths and relief protection during commissioning. However, published data may assume ideal water, clean conditions, and perfect maintenance. Real installations rarely behave so neatly. Recheck the calculation with actual fluid properties and operating patterns before approving the pump.

Check NPSH and Cavitation: Keep NPSHA Above NPSHR

7 Tips for Choosing a High Pressure Plunger Pump

Check NPSH carefully before selecting a high pressure plunger pump. NPSHA must remain above NPSHR at the intended flow and speed. NPSHA describes what the installation provides. NPSHR describes what the pump requires. Both values use absolute pressure, not gauge pressure. This distinction prevents many costly errors.

Measure liquid temperature, tank level, suction pressure, and pipe losses. Higher temperatures increase vapor pressure and reduce available suction head. A long, narrow suction line can also consume valuable NPSHA. Keep the suction pipe short, straight, and generously sized. Remove sharp bends near the inlet. Avoid trapped air pockets. They can trigger unstable operation.

Cavitation may sound like gravel inside the pump. Vibration can rise. Flow may fluctuate. Plunger and valve surfaces can then suffer damage. During site checks, compare actual readings with design calculations. Do not rely only on a catalog curve. NPSHR can change with speed, flow, liquid properties, and test conditions. A safety margin is wise, but its size depends on operating uncertainty. More margin is not always practical. I have seen systems pass calculations yet cavitate during cold starts or low tank levels. That gap deserves honest review. Measure again under real conditions.

7 Tips for Choosing a High Pressure Plunger Pump - Check NPSH and Cavitation: Keep NPSHA Above NPSHR

Use the following engineering checks during pump selection, system design, and commissioning. Final values must be verified against the pump curve, fluid properties, operating temperature, and actual installation conditions.

Tip Selection Dimension What to Check Practical Criterion or Formula Illustrative Engineering Data Why It Matters
1 Confirm the required flow and pressure Define the normal, minimum, and maximum flow rate together with the required discharge pressure. Include static head, piping friction, valves, filters, injectors, and process backpressure. Select a pump whose rated operating point covers the duty point without continuously operating at the extreme end of its curve. Example duty: 60 L/min at 100 bar(g).
Hydraulic power: P = Q × Δp = 0.001 m³/s × 10,000,000 Pa ≈ 10 kW
With 75% overall efficiency, motor input is approximately 13.3 kW. 		Undersizing causes inadequate process performance; oversizing can increase energy use, pulsation, mechanical stress, and operating cost.
2 Check NPSHA against NPSHR Calculate the available net positive suction head at the pump inlet and compare it with the manufacturer-published required NPSH at the actual flow and speed. NPSHA = ps,abs/(ρg) + zs − hf,s − pv/(ρg)
Design target: NPSHA should exceed NPSHR with a documented site margin, commonly about 0.5–1.0 m or 10–20%, subject to the pump and application. 		Example for water at 20°C:
Suction absolute pressure = 0.30 bar(a) ≈ 3.06 m of water
Static suction head = +2.00 m
Suction losses = 0.70 m
Vapor-pressure head = approximately 0.24 m
NPSHA ≈ 4.12 m. If NPSHR is 3.0 m, the basic margin is approximately 1.12 m. 		Insufficient NPSH can cause vapor-bubble formation, noise, vibration, reduced flow, seal damage, and rapid plunger or valve wear.
3 Evaluate fluid temperature and vapor pressure Use the actual liquid temperature and composition when calculating NPSHA. Vapor pressure increases significantly as temperature rises. For water, subtract the vapor-pressure head from NPSHA. Never use cold-water properties for a hot-liquid application. Approximate water vapor pressure:
20°C: 2.34 kPa(a) ≈ 0.24 m head
40°C: 7.38 kPa(a) ≈ 0.75 m head
60°C: 19.9 kPa(a) ≈ 2.03 m head 		A temperature increase can reduce the available suction margin even when the tank level, pipe size, and pump speed remain unchanged.
4 Design the suction line for low losses Keep the suction pipe short and direct, minimize elbows and restrictive fittings, and avoid unnecessary elevation above the liquid source. Use a pipe velocity appropriate for the liquid and application; a preliminary water-service target of approximately 0.6–1.5 m/s is often used for flooded suction systems, subject to detailed design. Example: water flow of 60 L/min = 0.001 m³/s.
In a 40 mm internal-diameter pipe, velocity is approximately: v = Q/A ≈ 0.80 m/s 		Lower suction-line velocity and fewer restrictions reduce friction loss, improve NPSHA, and help prevent inlet starvation.
5 Account for pump speed and inlet dynamics Check the pump speed, stroke length, plunger diameter, suction valve behavior, and acceleration effects. High speed can increase inlet losses and reduce the effective suction margin. Select a speed that meets the required flow while maintaining stable valve operation. Confirm NPSHR at the actual speed and flow rather than relying only on a nominal rating. If speed is increased from 300 to 360 rpm, the approximate speed ratio is 1.20. For a fixed-displacement reciprocating pump, theoretical flow generally rises by about 20%, while inlet losses may rise substantially with velocity. Operating too fast can create valve chatter, incomplete filling, pulsation, heat generation, and cavitation even when the average suction pressure appears acceptable.
6 Control pulsation and protect the inlet Review the suction and discharge pulsation characteristics. Use an appropriately sized pulsation dampener where required, and prevent air from entering through fittings, seals, or low-level vortexing. Keep the suction line continuously flooded where possible. Install the dampener, if needed, according to the pump manufacturer’s sizing method and the required pulsation limit. A suction pressure fluctuation of only 0.20 bar is approximately 2.0 m of water head: ΔH ≈ Δp/(ρg) ≈ 2.0 m
This fluctuation can consume a large portion of the available NPSH margin. 		Pressure fluctuations and entrained air reduce the effective suction pressure and may produce intermittent cavitation, unstable flow, and accelerated valve wear.
7 Verify the installation during commissioning Measure suction pressure, discharge pressure, flow, temperature, vibration, and noise at normal and limiting operating conditions. Compare measured conditions with the design calculation and pump curve. Investigate rattling, crackling noise, unstable pressure, falling flow, or unexpected vibration immediately. Commissioning record should include:
Suction pressure: absolute pressure preferred
Liquid temperature: °C
Flow: L/min or m³/h
Vibration: mm/s RMS
Filter differential pressure: bar 		Field measurements reveal blocked strainers, closed valves, excessive pipe losses, hot liquid, air ingress, or operating points that differ from the original design.

Important: NPSHR is pump-specific and must be obtained for the selected pump at the intended flow, speed, liquid, and temperature. NPSHA calculations should use absolute pressure and consistent units; gauge pressure must be converted before use.

Match Materials and Seals to Temperature, pH, and Solids Content

7 Tips for Choosing a High Pressure Plunger Pump

Match materials and seals to temperature, pH, and solids content. Tip 1: Record the actual fluid temperature, not the room temperature. Heat can soften seals and reduce service life. Tip 2: Check pH across the entire process cycle. Cleaning chemicals may be more aggressive than the main fluid. Stainless steel suits many applications, but highly corrosive liquids may require duplex alloys or ceramic components. Verify compatibility charts with real concentrations. Small details matter.

Tip 3: Select seals for both temperature and chemical exposure. PTFE handles many aggressive fluids, while EPDM and FKM suit different temperature and chemical conditions. No seal fits everything. Tip 4: Measure solids content and particle size. Abrasive particles can score plungers, damage packing, and lower pressure stability. Tip 5: Consider hardened plungers or ceramic surfaces for abrasive service. Tip 6: Use filtration or flushing when solids cannot be removed. Do not assume a coarse strainer solves every problem.

Tip 7: Ask for application testing before purchase. I have seen pumps perform well during short trials, then struggle after repeated thermal cycles. A practical test should reflect startup, shutdown, cleaning, and maximum pressure. Confirm leakage limits, seal replacement time, and inspection access. It is easy to choose materials from a table and miss real operating changes. Review the specification with a qualified engineer, especially when temperature, pH, and solids vary together. Test before committing.

Compare Efficiency and Pulsation: Hydraulic Efficiency May Exceed 90%

Choosing a high-pressure plunger pump starts with hydraulic efficiency, not headline pressure. The U.S. Department of Energy reports that pumping systems can consume about 25% of industrial motor energy. Small efficiency losses can therefore become large operating costs. A suitable pump should match flow, pressure, liquid viscosity, and duty cycle. Confirm volumetric efficiency at actual operating conditions. Laboratory figures may exceed 90%, but field performance can fall below that level.

Pulsation deserves equal attention. Plunger movement creates pressure waves, especially at low flow or high discharge pressure. Compare residual pulsation with and without a properly sized dampener. API Standard 674 emphasizes pulsation control, vibration limits, and mechanical reliability for reciprocating positive-displacement pumps. Check the report’s test method. Numbers without test conditions mislead.

Look at seven practical details: efficiency, pulsation, seal life, material compatibility, maintenance access, motor loading, and control response. Ask for performance curves, not isolated percentages. Measure suction pressure with a calibrated gauge. Inspect pipe supports after commissioning. They often reveal vibration first. My own preference is conservative sizing, although oversizing can reduce efficiency and increase pulsation. That trade-off needs review. The DOE sourcebook also recommends system-level assessment, because a highly efficient pump cannot correct restricted piping, poor valve selection, or unstable demand.

7 Tips for Choosing a High Pressure Plunger Pump

Compare hydraulic efficiency and discharge pulsation across common plunger configurations. Hydraulic efficiency can exceed 90% when the pump is correctly sized and operated near its design point.

The comparison uses representative high-pressure operating values: more plungers generally reduce flow pulsation, while efficiency improves as the pump approaches its rated operating point. Actual results vary with pressure, speed, fluid viscosity, valve condition, and system design.

Verify API 674 Compliance, Serviceability, and Life-Cycle Cost

7 Tips for Choosing a High Pressure Plunger Pump

Tip 1

Verify API 674 compliance before comparing prices. This standard addresses reciprocating positive displacement pumps, including design, testing, and documentation. Ask for certified drawings, material records, pressure test results, and a clear deviation list.

Tip 2

Match the pump to actual duty conditions. Check pressure, flow, fluid temperature, viscosity, and operating hours. A pump that barely meets the specification may suffer early wear.

Tip 3

Examine serviceability in practical detail. Can technicians replace plungers, packing, valves, and bearings without removing the entire unit? Look for inspection ports, accessible lubrication points, and common maintenance tools.

Tip 4

Confirm spare-parts availability. Delayed seals can stop a process for days.

Tip 5

Review the supplier’s field experience with similar pressures and fluids. Ask for maintenance records, not vague promises.

Tip 6

Calculate life-cycle cost, not only purchase cost. Include energy use, planned maintenance, spare parts, downtime, installation, and disposal. A cheaper pump may become expensive after repeated packing failures.

Tip 7

Check control flexibility and monitoring options. Pressure sensors, vibration checks, and flow alarms can reveal problems early.

However, monitoring cannot replace inspection. I have seen well-instrumented pumps fail because operators ignored small leakage. That detail deserves attention.

Ask for realistic service intervals and written assumptions. Some recommendations look precise but depend heavily on water quality, alignment, and operating discipline. Perfect predictions are rare.
